8 inch FPD, Single Plane System, Floor/Ceiling Mounted C-Arm
- * You can see the product movie by clicking the picture above.
Introducing Trinias
The synergy between Trinias and medical care providers committed to providing the highest quality medical treatment and interventions leads to better patient-centered care. Reflecting years of experience Trinias has been painstakingly developed in conjunction with our customers.
Featuring new software and hardware, the new MiX package allows you to fully experience just how much more advanced and powerful the system is and how it supports even less invasive procedures.
Experience the Next Frontier of Intervention <SCORE Imaging>
SCORE PRO Advance

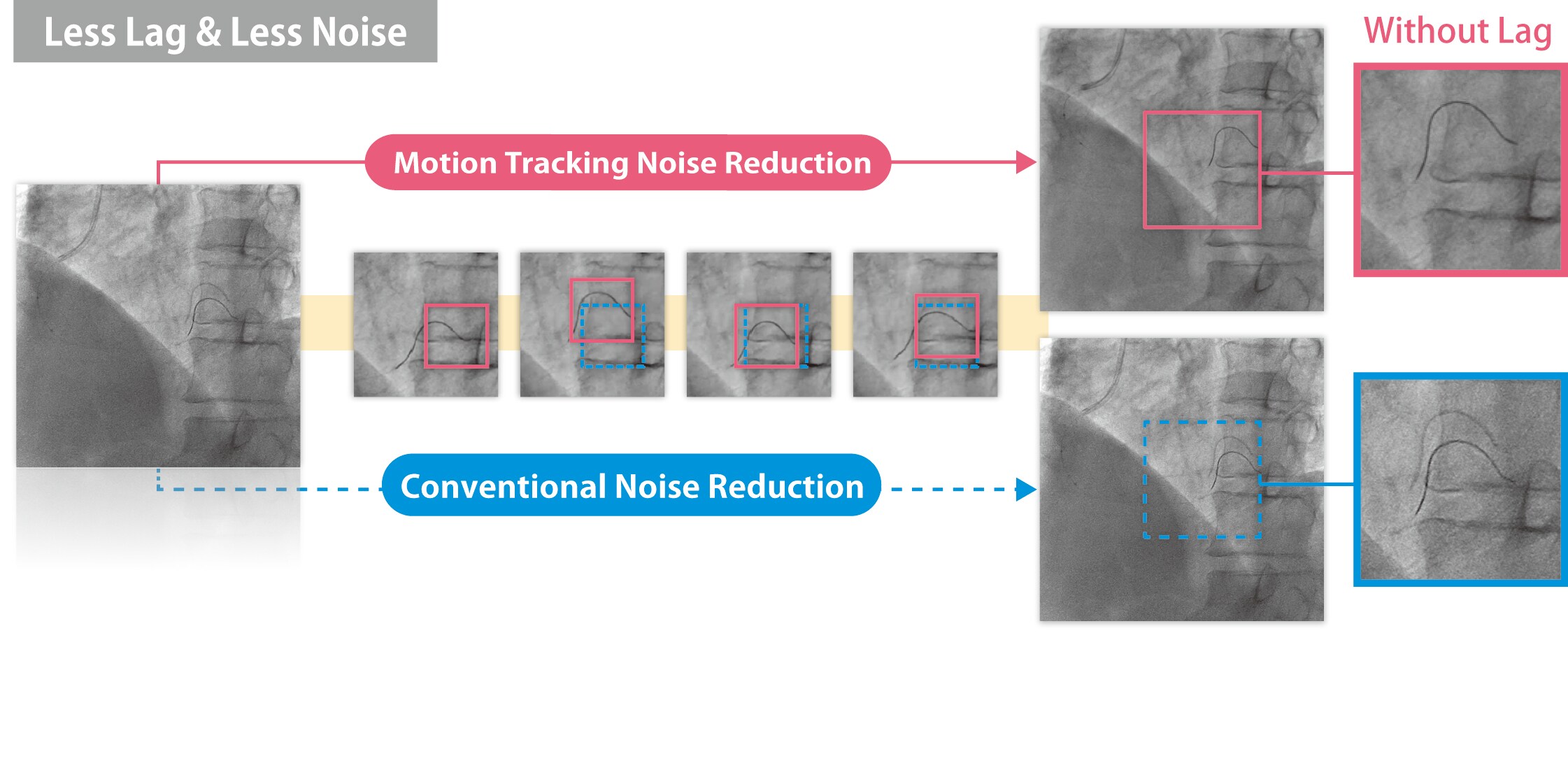

SCORE PRO Advance provides high-quality radiographic and fluoroscopic images with lower dose. Especially, new motion tracking noise reduction technology achieves to reduce noise and allows sufficient visibility of the tip of guide wire and catheter.
SCORE StentView +Plus*

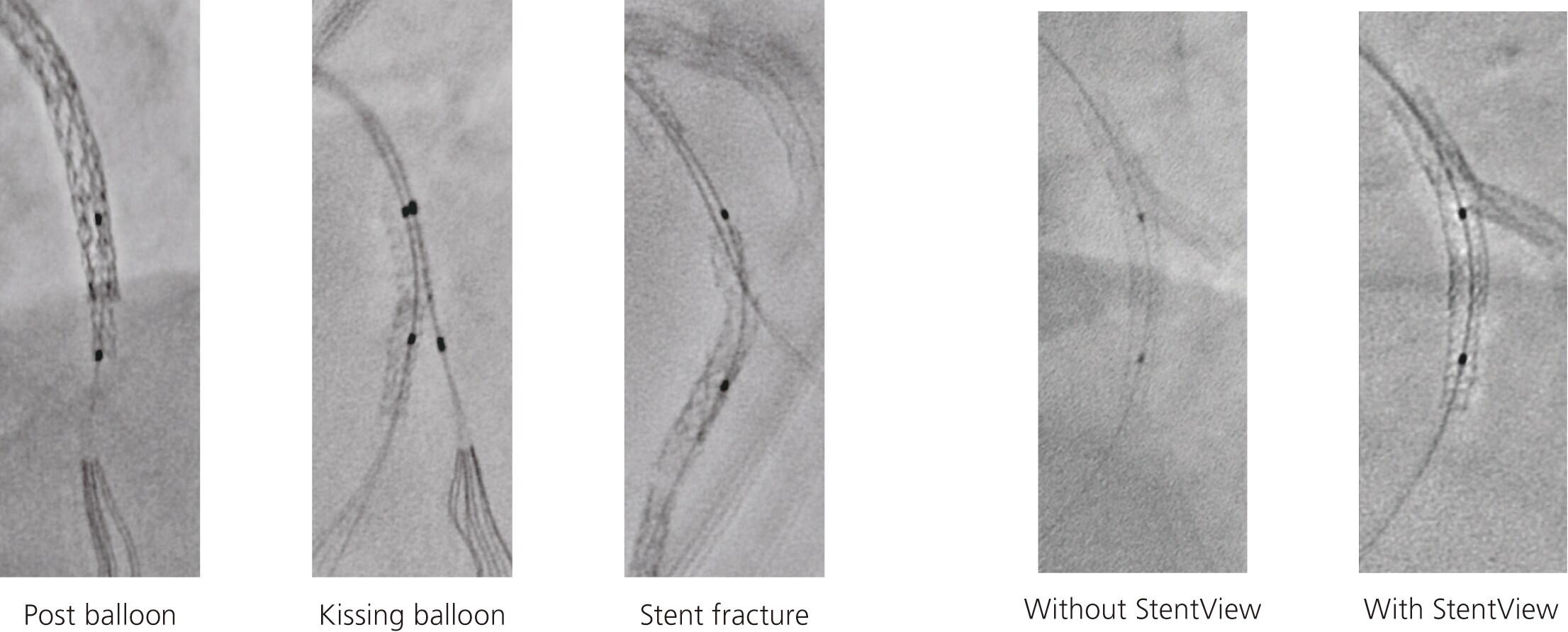

SCORE StentView+Plus is software developed specifically to support PCI procedures based on real-time image processing technology, a specialty of Shimadzu. Stents move with the pulse beat. However, SCORE StentView+Plus displays stents in a fixed position, not through post-processing, but rather in real time. This is particularly effective for assessing positional relationships between overlapping stents, or when re-expanding a stent using a balloon.

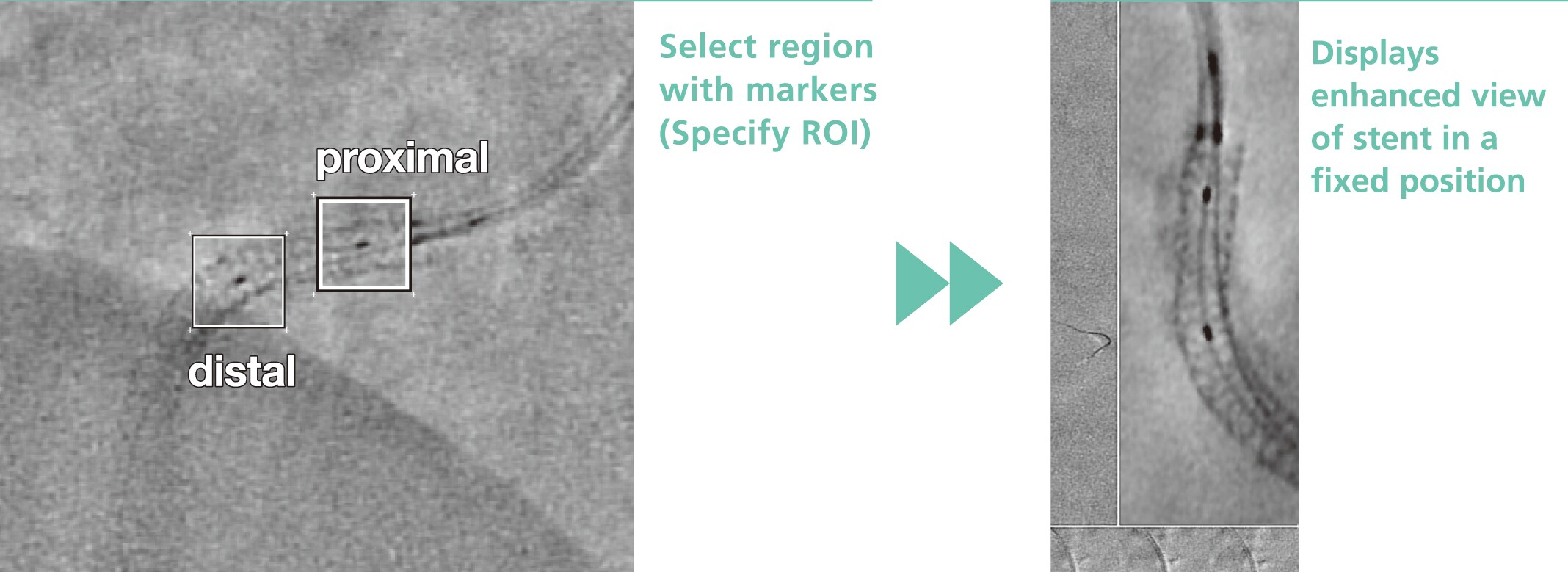

Newly, the function for specifying the region of interest (ROI) became available. It allows multiple markers to be used for automatic detection, rather than two markers as in previous versions, which contributes to higher detection efficiency and shorter examination times.
SCORE RSM
SCORE RSM is an extremely motion tolerant DSA technique. This application is especially effective for tracking across the entire lower extremities, 3D imaging in combination with C-arm movement and examinations on patients who have difficulty holding their breath.
SCORE Navi/Navi+Plus*

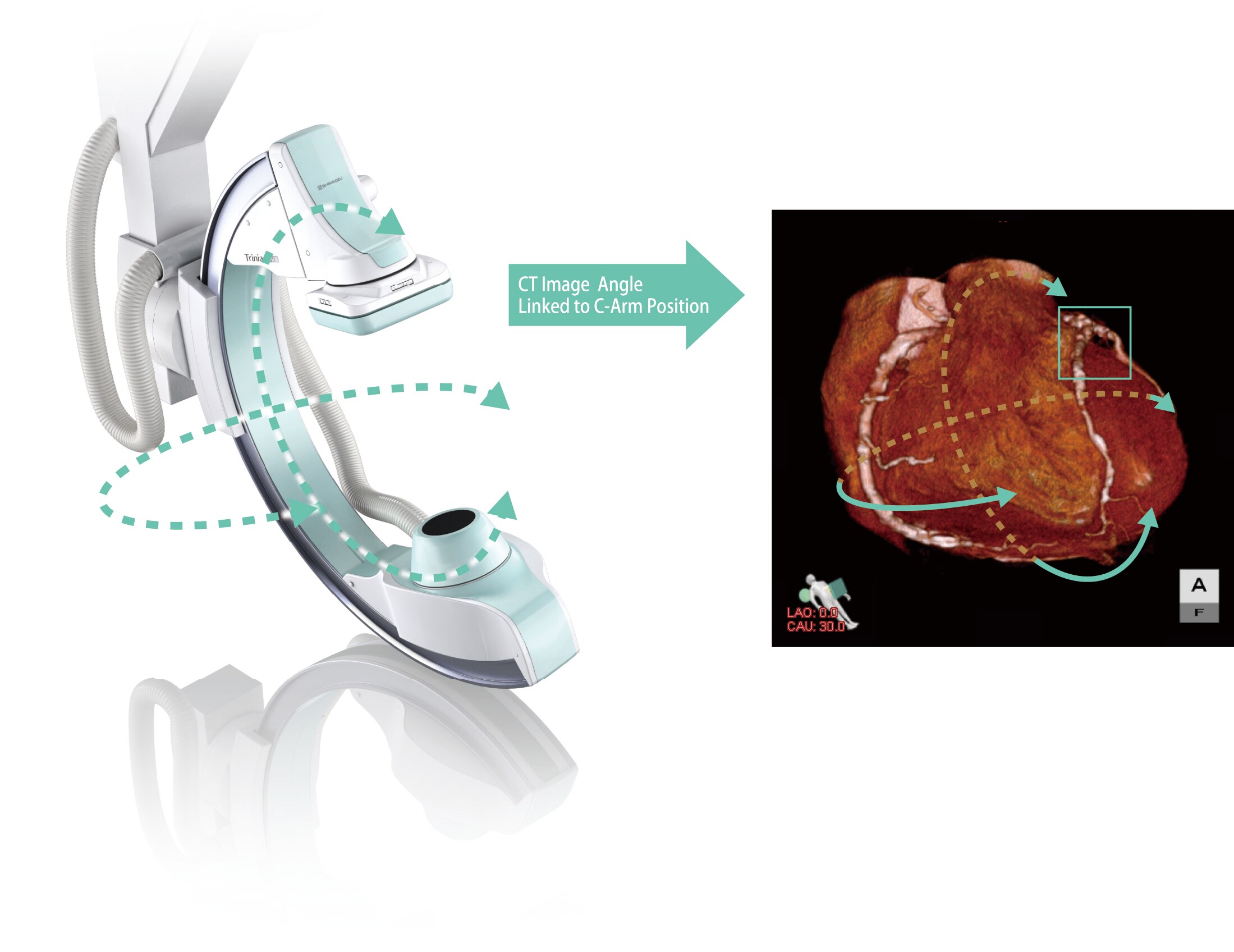

SCORE Navi/Navi+Plus is an application that utilizes preprocedure images to support minimally invasive interventions. By synchronizing the C-arm projections to pre-procedure MDCT images, the system enables these MDCT images to be used as a reference during interventions, reducing contrast media usage and X-ray dose. Registration of the MDCT images and the fluoroscopy images is easily achieved by performing fluoroscopy in 2 directions and the system will perform automatic alignment. The software can also overlay images onto fluoroscopy, which allows you to adjust the rate of blending. The Navi+Plus application also includes a virtual stent feature that allows you to simulate the stent size and placement position before carrying out a procedure.
Changing the way. Making it possible. <SMART Design>
SMART Access
Both the ceiling-mounted C-arm (type C12 MiX package) and floor-mounted C-arm (type F12 MiX package) provide a wide range of movement. In particular, with a floor-mounted C-arm, the base has a six-axis triple-pivot construction, which achieves a range of coverage close to that of the ceiling-mounted type.

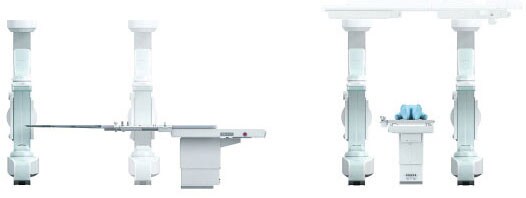

C8 Wide Coverage Reduces the Burden on Patients
The Ceiling-mounted C-arm is capable of full-body coverage without moving the patient, thanks to a wide 210 cm coverage in the transverse direction and 190 cm in the longitudinal direction. Movement in the transverse direction, in particular, supports a safe radial catheterization approach.

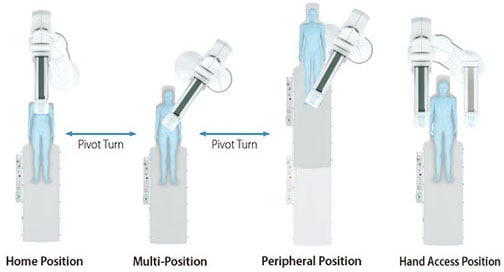

F8 Six-Axis Triple-Pivot Construction for Full-Body Coverage
A total of six axes are provided for the base and rotational axes of the floor-mounted C-arm, achieving wide coverage. In particular, the triple-pivot construction of the base enables freely adjustable arm positioning.
SMART Assist
Lever type C-Arm Controller CyberConsole and DirectMemory for quick C-Arm positioning provides single-action performance to make system control in the examination room and control room as simple as possible.
Dynamic Referencing function enables video playback and stopping during fluoroscopy.
SMART Display*
With the large 58-inch high-resolution color LCD/touch panel, the operator can select the optimal display of image data to suit the procedure and treatment.
Safety + Comfort = SMILE <SMILE Concept>

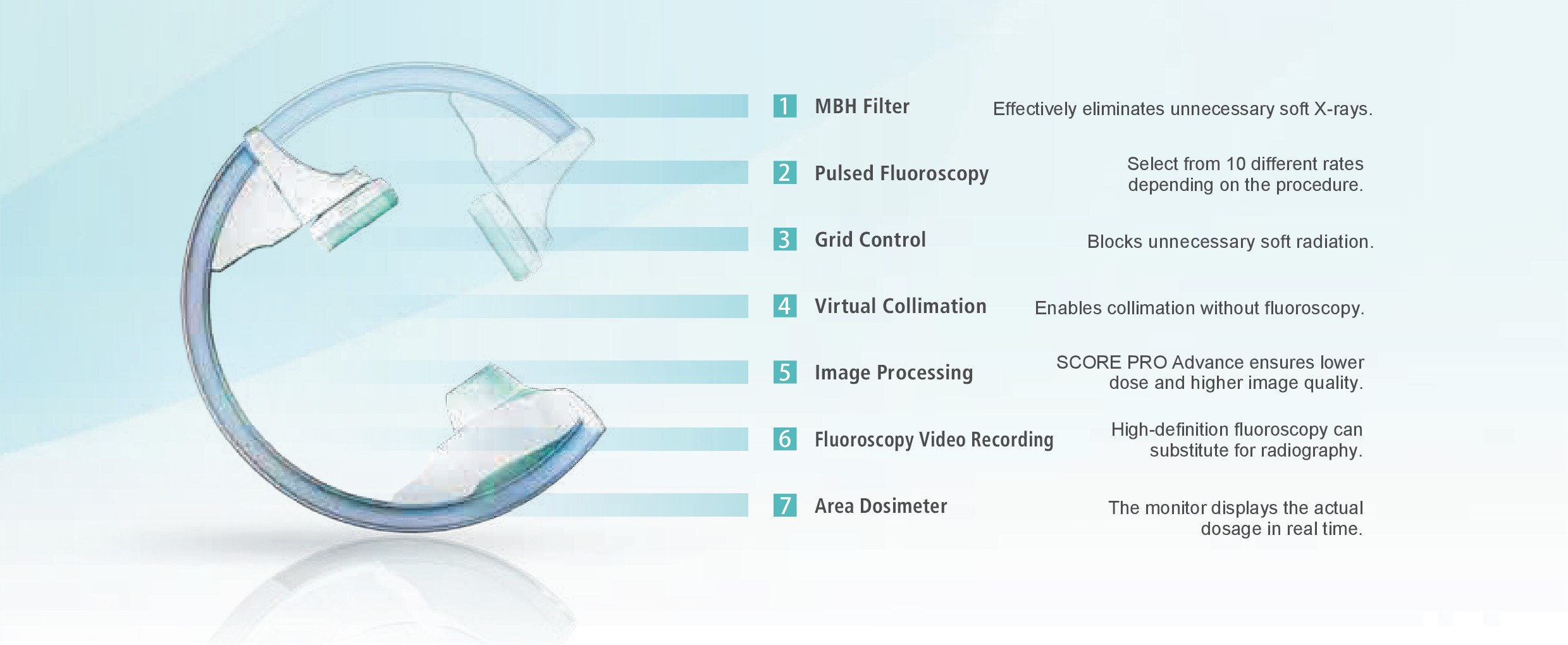

SMILE Dose-eye
SMILE Dose-eye achieves an excellent system-wide optimization between lower dose and high image quality.
SMILE Recovery
High speed setup, data mirroring for redundant data architecture and backup filament for X-ray tube benefit both patients and operators.
*Options
